IS.1153‑EPL/DF Euromex Trinokular Darkfield Mikroskop

IS.1153‑EPL/DF

Mikroskop Trinokuler terbaik Euromex buatan Holland, garansi resmi distributor euromex di indonesia


Technical Specifications

  • Download Catalogue
  • Ideal for live blood analysis
  • 5 W Cardioid mirror darkfield condenser
  • S100x oil objective with build-in iris
  • Trinocular models
  • EWF10x/20 mm and EWF10x/22 mm eyepieces
  • Quintuple reversed nosepiece
  • EPL and PLi plan objectives
  • 156 x 138 mm stage or 187/230 x 140 mm rackless stage
  • iCare sensor for energy saving
  • CSS - Cable Storage System
  • Provided with APL (Antimicrobial Protection Layer)

EYEPIECES

  • The iScope® IS.1153-EPL/DF with a finite optical system is supplied with Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube)
  • The iScope® IS.1153-PLi/DFi with a infinite optical system are supplied with Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and one adjustable diopter on the left tube for EPLi systems (Ø 30 mm tube)

HEAD

  • Trinocular Siedentopf type heads with 30° inclined tubes
  • Interpupillary distance from 48 to 76 mm
  • The trinocular head for model IS.1153-EPL/DF has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment
  • on the Ø 23.2 mm left tube
  • The trinocular head for models IS.1153-PLi/DF and IS.1153-PLi/DFi has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes
  • A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
  • The trinocular heads come with a Ø 23.2 mm photo port for cameras

OBJECTIVES

E-Plan EPL

4x/0.10

10x/0.25

20x/0.40*

S40x/0.65



S100x/1.25 oil**

Plan PLi IOS

4x/0.10

10x/0.25

20x/0.40*

S40x/0.65

S60x/0.85*

S100x/1.25 oil***



* Optional.
** S100x oil objective with built-in iris diaphragm.
*** Super contrast plan PLi S100x oil infinity corrected objective with built-in iris diaphragm

All optics are anti-fungus treated and anti-reflection coarted for maximum thoughput

ERGONOMIC TILTING HEAD (for IOS models only)
  • Optional ergonomic 5 to 35° tilting head supplied with EWF 10x/22 mm eyepiece
  • Interpupillary distance 48-75 mm
  • Optional photo attachment for tiltinghead with standard Ø 23.2 mm tube

(To order an iScope® with tilting head use reference IS.1158‑PLi/DF or IS.1158‑PLi/DFi.
To order an iScope® with tilting head and photo attachment use reference IS.1159‑PLi/DF or IS.1159‑PLi/DFi)

NOSEPIECE
Revolving quintuple reversed nosepiece for maximum five objectives

STAGES
The iScope® can be equipped with two types of stages (designed for 2 slides):

  • 156 x 138 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage
  • 187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope® rackless stage has no protruding parts and therefore it is safer in use. Furthermore it enables more smooth movement

CONDENSER FOR DARKFIELD (STANDARD)
A state-of-the-art condenser equipped with reflective cardioid mirrors and a built-in high powered 5 W LED light source. Together with a S100x objective with built-in iris diaphragm this enabels a 1000x magnification darkfield solution. The power supply of the 5 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included

IS.1153-EPL.DF_condenser

CONDENSER FOR BRIGHTFIELD (SUPPLIED)

  • Height adjustable Abbe N.A. 1.25 condenser for brightfield
  • Accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/ S100x oil immersion IOS objectives for economical phase contrast
  • With magnification indication

PHASE CONTRAST CONDENSER WITH SLIDER (OPTIONAL)
There is a choice of two optional NA. 1.25 phase contrast condenser sets with phase contrast sliders and plan phase contrast objectives. The first version comes with plan phase 10x and S40x objectives with matching slider, the second version comes with plan phase 20x and  S100x oil immersion objectives. Available for iScope® 160 mm and IOS infinity versions

IS.9162-x

All sets are supplied with a centering telescope and a green opaque filter
(Photo: IS.9162 - Phase contrast set)

FOCUSING

  • Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm.
  • Supplied with an adjustable rack stop to prevent damage to sample and objectives.
  • The coarse adjustments are equipped with friction control

To upgrade an existing iScope® to darkfield a cardioid condenser with integrated high powered 5 W LED illumination and external power supply (IS.9150) is available. One also has to purchase a 86.521, Plan PL S100x objective with built-in iris diaphragm or a IS.7200-I super contrast plan PLi S100x infinity corrected objective

ILLUMINATION FOR DARKFIELD
High powered 5 W LED, built-in the cardioid mirror condensor

ILLUMINATION FOR BRIGHTFIELD

ISCOPE_neoled

As a standard supplied with:

  • 3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply
  • The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED are
    • the low energy consumption,
    • no heating and
    • a long operating life span
  • Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also optionally available for other models

IS.1152_EPL_back

ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS - CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

PACKAGE CONTENT
Supplied a height adjustable Abbe N.A. 1.25 condenser for brightfield, power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. All packed in polystyrene boxes

To receive further information on IS.1153‑EPL/DF Euromex Trinokular Darkfield Mikroskop, please complete the following form. We will reply as soon as possible.

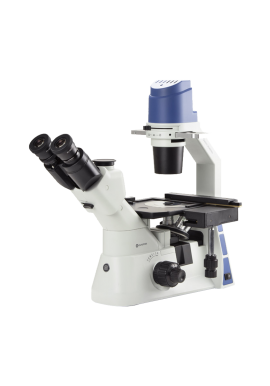

OX2053PLPH  Biological Microscope Trinocular
