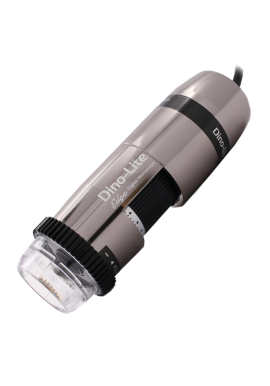

AM73915MZT Dinolite Edge 3.0

IDR 28,679,787

AM73915MZT

Dinolite Edge Resolusi 5MP Pembesaran 20-200x Pengukuran Yes kalibrasi auto scan USB 3.0 Fitur spesial AMR, EDOF, EDR Harga mikroskop digital industri terbaik untuk mengukur part analisa kontaminasi Garansi resmi Microscope Indonesia Microscope Indonesia partner resmi distributor mikroskop Dino-Lite

Technical Specifications

Sambungan USB 3.0 menghadirkan gambar yang tajam dan pergerakan lebih cepat tanpa kompresi untuk melihat detail terbaik, model ini termasuk EDOF, AMR dan EDR.

Tutorial pengukuran 3D : Pengukuran 3D dengan mikroskop







  High-Speed transmission
Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 FPS at 2560x1920 or 45 FPS at 1280x960.

  High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

  5.0 Megapixels
The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560x1920 without compression.

  Depth acquisition (DPQ)
The delicate focus control of this model allows for the acquisition of more useful depth information.
(How to acquire depth information.)

  Extended Depth of Field (EDOF)
Viewing rough surface with height range out of depth of focus, the EDOF can take several images at different focus and stack them automatically within a click.

  Extended Dynamic Range (EDR)
Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.

  Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

  ​Enhanced Flexible LED Control (eFLC)
Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.

Note: eFLC is available for AM73915MZT(R10) or later.

  Adjustable polarizer
The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.

  Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.



Referensi produk :

 BLZW





Model AM73915MZT Dino-Lite Edge 3.0
antarmuka USB 3.0
Resolusi produk 5 Mega Pixel (2560x1920)
Pembesaran 10x ~ 220x
Frame Rate 15fps di 5MP, YUY2 (USB 3.0)
45fps di 1.3MP, YUY2 (USB 3.0)

15fps di 1.3MP, YUY2 (USB 2.0)
Penerangan 8 LED putih
Microtouch Ya
Sistem operasi yang didukung Windows 10, 8, 7
Mac OS 10.9 atau yang lebih baru (EDOF / EDR TIDAK dikontrol di Mac OS)
Persyaratan sistem ‧ Intel® Core ™ i5 3.2GHz
‧ 20GB tersedia ruang HD
‧ 8GB tersedia RAM atau lebih
‧ 2GB kartu video atau lebih
‧ CD-ROM drive untuk instalasi
‧ USB 3.0 dengan intel chipset
kalibrasi Fungsi Ya
Fungsi pengukuran Ya
Unit Dimensi 11.9cm (H) x 3.3cm (D)
Berat unit 110g

Informasi tentang jarak kerja dan bidang pandang

M WD FOV (x) FOV (y) DOF
10 136,0 37,8 28.3
20 60,2 19,5 14,6 2,5
30 33,5 13.0 9.7 1.8
40 20,9 9.8 7.3 1,5
50 13,9 7.8 5.8
60 9.7 6.5 4.8
70 7.1 5.6 4.2 1.0
80 5.5 4.9 3.6
90 4,5 4.3 3.2
100 4.1 3.9 2,9
110 4.0 3.6 2.7
120 4.1 3.3 2.4
130 4,5 3.0 2.2
140 5.0 2.8 2.1
150 5.6 2.6 1,9
160 6.3 2.4 1.8
170 7.1 2.3 1,7
180 8,0 2.2 1,6
190 8,9 2.1 1,5
200 9.9 2.0 1,5
210 10.9 1,9 1.4
220 11,9 1.8 1.3 0,1


M = perbesaran tingkat WD = kerja jarak (tanpa tutup depan) FOV = bidang pandang DOF = kedalaman bidang Unit = mm

To receive further information on AM73915MZT Dinolite Edge 3.0, please complete the following form. We will reply as soon as possible.
