AM73915MT8 Dinolite Edge 3.0

Pada perbesaran tinggi, ketebalan atau target yang kurang fokus, dapat menimbulkan kesulitan dalam pemfokusan karena kedalaman bidang mikroskop yang kecil. Seri AM73915MT8 dengan pembesaran 800x menyediakan EDOF untuk menghasilkan gambar bertumpuk. AM73915MT8 menawarkan DPQ, EDOF, eFLC, AMR, EDR, fungsionalitas klik-untuk-fokus untuk mengubah fokus secara otomatis ke tempat yang diinginkan, dan pencitraan langsung yang halus dengan resolusi 5.0 MP pada 15 fps atau 1.3 MP pada 45 fps.

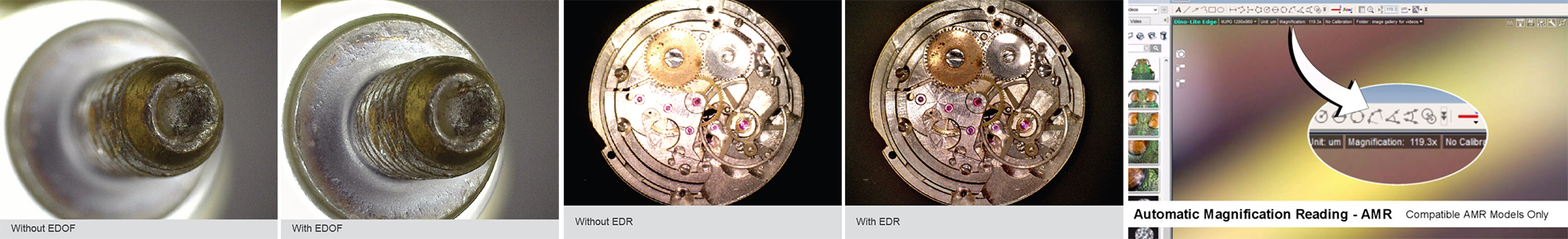

​High-Speed transmission Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 fps at 2560 x 1920 or 45 fps at 1280 x 960.     ​5.0 Megapixels The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560 x 1920 without compression.     ​Extended Depth of Field (EDOF) Viewing rough surfaces with height range out of depth of focus, the EDOF can take several images at different focus and stack them automatically within a click.     ​Depth Acquisition (DPQ) The delicate focus control of this model allows for the acquisition of more accurate depths information. (How to acquire depth information.)     Enhanced Flexible LED Control (eFLC) Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with a 32-level light intensity adjustment.     Extended Dynamic Range (EDR) Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.     ​Automatic Magnification Reading (AMR) Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.     ​Robust Metallic Housing The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interferences.
