AM4515T8 Dinolite
IDR 10,256,000
AM4515T8
Dinolite Edge Resolusi 1.3MP Pembesaran 700-900x Pengukuran Yes kalibrasi auto scan
Technical Specifications

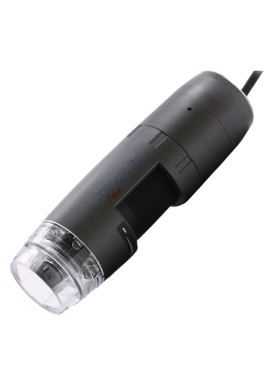

Dino-Lite AM4515T8 seri mikroskop portabel digital dengan fitur pembesaran tinggi (700~900x), dilengkap dengan Automatic Magnification Reading (AMR) untuk mempermudah pembacaan pembesaran dan melakukan pengukuran.
Referensi produk :
Specifications
| Model | AM4515T8 Dino-Lite Edge |
| Interface | USB 2.0 |
| Product Resolution | 1.3M pixels (SXGA) |
| Magnification Rate | 700x~900x |
| Sensor | Color CMOS |
| Frame Rate | Up to 30fps |
| Save Formats | Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM Movie: DinoCapture2.0: WMV, FLV, SWF |
| Microtouch | Touch sensitive trigger on the microscope for taking pictures |
| Measurement Function | Yes |
| Calibration Function | Yes |
| Operating System Supported | Windows 8, 7, Vista, XP |
| Unit Weight | 100 g |
| Unit Dimension | 10.3 cm (H) x 3.2 cm (D) |
| Package Dimensions |
16 cm (L) x 16 cm (W) x 6 cm (H) |
Information about working distance and field of view
| M | WD | FOV (x) | FOV (y) | DOF |
| 700 | 6.6 | 0.6 | 0.4 | 0.09 |
| 800 | 6.4 | 0.5 | 0.4 | 0.08 |
| 900 | 6.3 | 0.4 | 0.3 | 0.07 |
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
